MCB Port Multiplexer N to 1

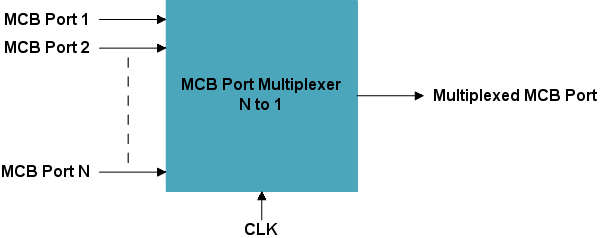

  Multiplexes N MCB ports into 1 MCB Port Multiplexer N to 1

MVD Cores develops IP cores which need DDR External Memory.

To spare resources or to allow more components to have access to DDR memory, MVD has designed MCB interfaces ports Multiplexer N to 1 for Xilinx® components.

  • Drop-in module for, 7 Series and later Xilinx FPGAs
  • 8 MCB input interface ports (each channel can be trimmed during implementation process)
  • Can support unidirectional and bidirectional
  • 1 MCB output interface which time multiplexed the inputs
  • 32 bits data MCB interface port only
  • Fully synthesizable RTL VHDL design (not delivered) for easy customization
  • Design delivered as Netlist

The MCB port Multiplexer IP core can be used to extend the number of MCB interfaces or to reduce implementation resources.
