MPTS Demultiplexer

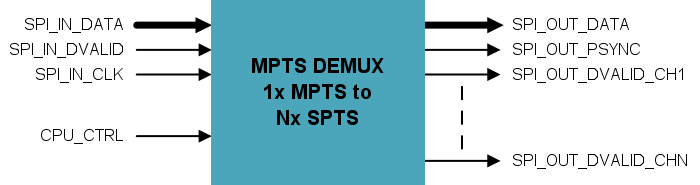

  The MPTS Demultiplexer converts an MPTS input stream into Nx SPTS output streams. MPTS Demultiplexer block diagram

The MVD MPTS Demultiplexer core is a drop-in module that includes the following functions:
  • Receives an MPTS input stream and de-multiplexes services according to the PID programming done
  • De-multiplexes up to 32 services with up to 8 PIDs per service
  • Automatically filters incoming tables (PAT, SDT, EIT , NIT), NULL packet and passed through PMT (if programmed) without modification
  • No PCR process is done as no packet is time shifted

  • Drop-in module for Spartan-6 and 7-Series FPGAs
  • SPI smart receiver
  • CPU interface
  • Full synthesizable RTL VHDL design  (not delivered) for easy customization
  • Design delivered as Netlist

MVD MPTS Demultiplexer may be used in addition to the DVB/ATSC remultiplexer core and IP-TV transmitter
for SPTS to IP application.
