RTP transmitter

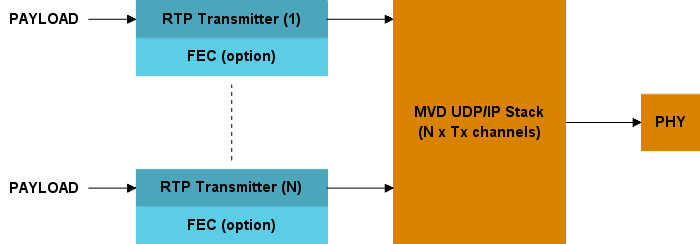

  Full hardware RTP transmitter RTP Transmitter block diagram

Description
    The RTP Transmitter IP core implements a full Hardware RTP Transmitter.
    If several channel are implemented into the FPGA, it allows sending RTP packets with a different payload type and different length on each channel ported.         		    Features
    • Drop-in module for Spartan™-6, Virtex™-7, Artix™-7, Kintex™-7 and Zynq™ Xilinx FPGAs
    • Companion core of the MVD UDP/IP Stack IP core
    • RTPv2 encapsulation
    • Various Payload Type supported
    • Support FEC Transmitter (optional)
    • Variable RTP packet Payload length
    • Computation of RTP Timestamp for RTP packets
    • Possibility to bypass RTP Encapsulation to perform simple UDP Encapsulation for application which requires only UDP transmissions
    • UDP compatible input
    • Programmable Parameters of RTP and FEC (CPU interface)
    • 2D-FEC transmitter support (option) compliant with SMPTE 2022 only for MPEG-TS (Payload type 33)
    • FEC option requires external memory
    • Netlist version available for ISE and VIVADO
    Applications

    MVD RTP transmitter is specially developed to transmit RTP flows on a routed network. It can be used to send IPTV compliant streams.

    MVD UDP/IP Stack IP core is mandatory to use this core.


    Documentation
    Product brief
    Data sheet
