TS Jitter Cleaner

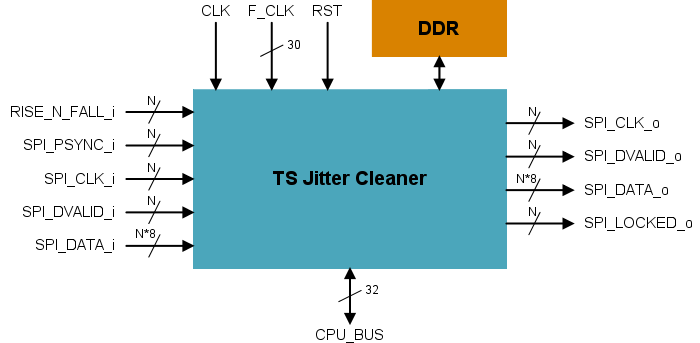

  The TS Jitter Cleaner IP core allows to de-burst and de-jitter MPEG-TS packets TS Jitter Cleaner

All receiver equipments which have a DVB-SPI input must be fed with a stream which respects the timing between each PCR packet.
The TS Jitter Cleaner IP core allows the transmission of an MPEG-TS data stream made of 188 bytes packets to such a receiver equipment with a DVB-SPI input.

The core is able to de-burst and de-jitter MPEG-TS packets of a CBR stream. The output respects PCR accuracy timing according to TR 101 290 standard.

The core can be configured to use BRAMs memory (if input streams have low jitter and/or bursts) or DDR memory (larger memory which permits to manage input streams with higher jitter and/or burst).
  • Drop-in module for Spartan™-6 and 7 Series Xilinx® FPGAs
  • Single clock (125MHz or higher)
  • Supports CBR input streams only
  • Supports any packet length input from 188 to 255 bytes
  • Supports data packet or data burst format
  • Supports either internal BRAMs or External DDR memory
  • Can manage up to 8 streams per instance
  • Respects the PCR Accuracy according to TR 101 290 standard
    (+/- 500ns)
  • Auto-adaptation of frequency offset according to TR 101 290 standard
    (27MHz +/- 810Hz)
  • Auto-adjustment for a bitrate variation up to 32kbits without any discontinuity of the stream at the output
  • For a bitrate variation higher than 32kbits, the core is restarted
  • CPU interface for reading bitrate calculation of the managed streams
  • Full synthesizable RTL VHDL design (not delivered)for easy customization
  • Design delivered as Netlist (.ngc or .edif formats)


The TS Jitter Cleaner IP core is a module allowing to create DVB-SPI compliant stream from a CBR stream where MPEG-TS packets are not sent regularly (packets come in bursts) or suffer from jitter.
