Full Hardware UDP/ IP stack



 Full Hardware UDP/IP stack


Full Hardware UDP/IP stack block diagram




(*): Applications layer can be: FIFO, modulatos, top layer protocol over UDP such as RTP, etc (not included in the IP core)


Description

The UDP/IP core is a drop-in module which includes its own MAC to send and receive UDP packets on an Ethernet network.


Applications

The UDP/IP core can be used in applications related to Ethernet transmission:
- voice over IP (VoIP)
- television over IP (IPTV)
- fast transmission of large amounts of data
  (medical imaging, etc)

  Features

  • Drop-in module for Spartan™-6, Virtex™-7, Artix™-7, Kintex™-7 an Zynq™ Xilinx FPGAs
  • GMII default interface (GMII-to-RGMII option / SGMII with Xilinx Logicore IP Ethernet 1000BASE-X PCS/PMA or SGMII)
  • MAC Layer is included in the core (support of Ethernet Frame II)
  • Compatible with 10/100/1000 Ethernet mode
  • Supported protocols :
    • IPv4
    • UDP
    • ARP (for Request and Reply)
    • ICMP
    • IGMPv3 (supports IGMPv2 for backward compatibility)
    • DHCP client
    • VLAN Rx / Tx (supports IEEE 802.1 Q Frame)
  • IPv4 fragmentation not supported
  • Support up to 8 Multicast addresses for Reception
    (can be increased if needed but will require more FPGA resources)
  • Netlists delivered for 1, 2, 4, 8, 16, 24 and 32 transmit UDP channels
  • Management of ARP table up to UDP output channels count
    (if UDP output channels count >= 2)
  • Point to Point UDP Transmission Channel for well known link
  • Jumbo frames up to 9kB (requires FPGA internal memory, delivered on demand)
  • Raw Frames (requires FPGA internal memory, delivered on demand)
  • Differential Services (QoS) programmable for each UDP transmit channel
  • TTL IP Layer programmable for each UDP transmit channel
  • Support up to 8 different VLAN ID tag for Ethernet Reception
    (can be increased if needed)
  • Support up to 8 different VLAN ID tag for for each UDP transmit channel
    (can be increased if needed)
  • Netlist version available for ISE and VIVADO

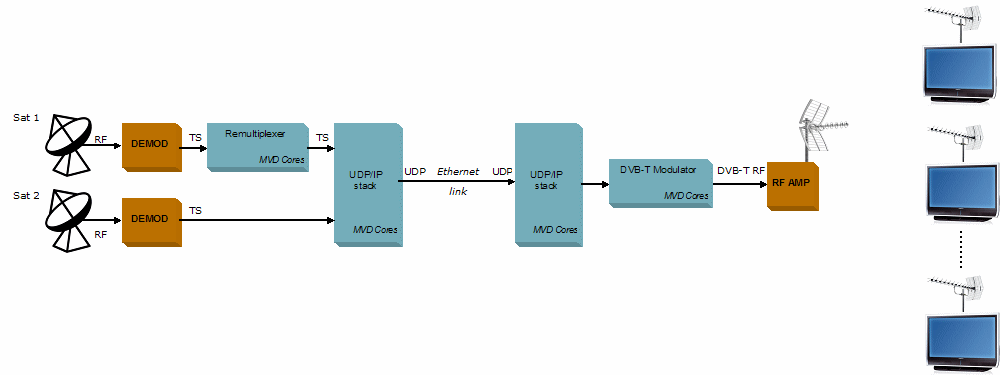

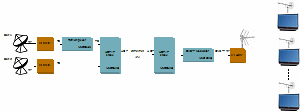

Typical application (clic to enlarge):
