ETR 101290
  Checks MPEG TS stream conformity to ETSI TR 101 290 V1.4.1 (2020-06) TR 101290

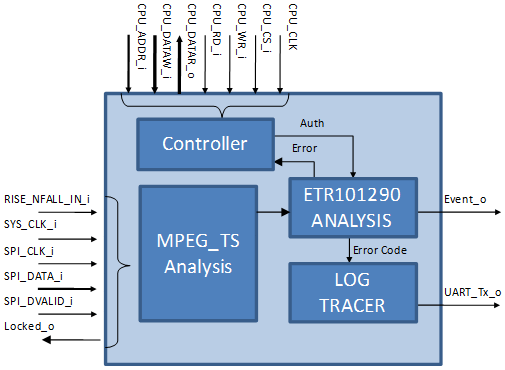

The ETR101290 IP core allows to check MPEG TS stream conformity to ETSI TR 101 290 V1.4.1 (2020-06)

  • ETR101290 is CPU programmable
  • It includes all the processing stages to analyze PSI/SI tables and ETR101290 errors
  • Each subpart of any priority item can be analyzed or not
  • An output event signal can inform a CPU of a new incoming error
  • Configurable output UART can log selected detected errors
  • Drop-in module for Spartan®-6, Virtex®-6, 7 Series and later FPGA families
  • DVB compliant
  • Auto adaptive and real time PSI/SI analysis
  • Manage up to 124 services and all PID values
  • For priority 1 (all), 2 (excepted PCR) and 3 (3.1/3.2; 3.4 to 3.6)
  • Configurable analysis authorization
  • Configurable UART output log
  • Full synthesizable RTL VHDL design (not delivered) for easy customization
  • Design delivered as Netlist


The ETR101290 IP core can be used to check the conformity of an DVB MPEG TS stream to the ETSI TR 101 290 standard.
