IP over DVB Encoder (RFC4326)
  Insertion of IP packets into user MPEG-2 TS according to RFC4326 standard(Unidirectional Lightweight Encapsulation) IP over DVB Encoder (RFC4326)

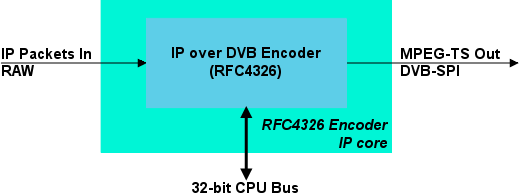

The IP over DVB (RFC4326) Encoder IP core allows to insert IP packets into user MPEG-2 TS according to RFC4326 standard (Unidirectional Lightweight Encapsulation).

  • Drop-in module for Spartan®-6, Virtex®-6, Artix™-7, Kintex™-7 and Virtex®-7 FPGAs
  • IP Packets encapsulation in TS frame in completion or no completion mode
  • Output in 188 or 204 byte CBR mode (with RS188/204 encoded byte)
  • PAT/PMT generation
  • Custom PID for PMT and PAYLOAD frames
  • Custom PSI generation delay
  • Configurable output rate
  • Full synthesizable RTL VHDL design (not delivered) for easy customization
  • Design delivered as Netlist


The IP over DVB (RFC4326) Encoder IP core can be used for transportation of network layer packets over digital television system (DVB-T, DVB-S, DVB-C, …)
Product brief
Data sheet
