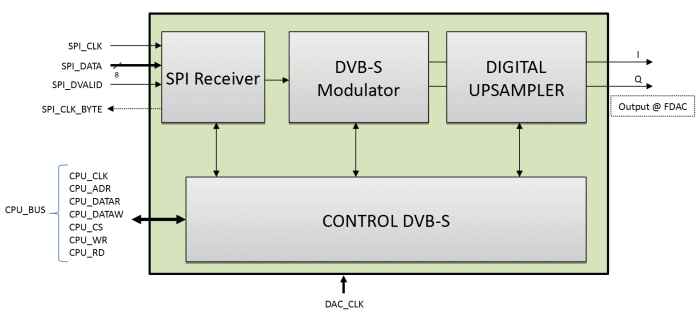

  The DVB-S modulator modulates an MPEG-TS DVB-SPI input into a QPSK output in baseband I/Q. DVB-S QPSK modulator block diagram

The MVD DVB-S core is a drop-in module for FPGA that includes the following functions:
  • Input data framer from DVB-SPI source (MPEG-TS flow)
  • DVB-S Modulator
    • Energy dispersal
    • Reed Solomon encoder
    • Enterleaver
    • convolutional encoder and puncturing
  • RRC filter
  • Flexible Digital Up Sampler
  • Output for complex DAC (2x16bits)

  • DVB-S (ETS 300 421) Compliant baseband transmitter for Satellite Modem Termination Systems (SMTS)
  • Drop-in module for: Spartan®-6, Virtex®-6/7, Kintex™-7, Artix™-7, Zynq™
  • Single clock (up to 160 MHz)
  • Robust SPI input (discarding incorrect input packets)
  • PCR re-stamping
  • Programmable symbol rates
  • Programmable 1/2, 2/3, 3/4, 5/6 and 7/8 punctured FEC
  • Complex base band output (2 x 16 bits)
  • Fully synthesisable RTL VHDL design (not delivered) for easy customization
  • Design delivered as Netlist
  • MER > 40dB

The MVD DVB-S may be used in applications related to satellite transmission.

The MVD DVB-S modulator core is delivered for baseband output to be natively connected to AD9789 DAC from Analog Devices.
