Multi Channel Up Converter for direct RF synthesis using MAX5881 Maxim RF DAC@4.2Gs/sec

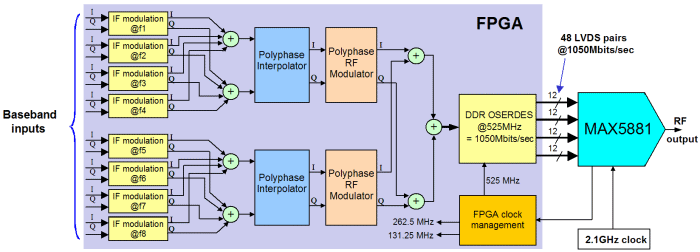

  Multi Channel Up Converter for direct RF synthesis using MAX5881 Maxim RF DAC@4.2Gs/sec Multi Channel Up Converter for direct RF synthesis using MAX5881 Maxim RF DAC block diagram

Description

Multi Channel Up Converter for direct RF synthesis using MAX5881 Maxim RF DAC@4.2Gs/sec		   Features
  • Supported FPGA families: Spartan®-6, Virtex®-6/7, Kintex™-7, Artix™-7, Zynq™
  • Converts multiple base band I/Q channels to RF in the range 50MHz to 2GHz.
  • Can be customized for a wide range of applications for any number of channel types and bandwidth
Applications
  • Broadband Communication Systems
  • Cellular infrastructure
  • Edge QAM devices
  • Cable Modem Termination Systems (CMTS)
  • Video-On-Demand (VOD)

Documentation

Product overview
Application note "From MPEG-TS to RF"
