IPTV Receiver
  IPTV Receiver
  An IPTV Receiver can be built from several MVD IP cores.
The IPTV Receiver extracts MPEG TS streams in UDP/RTP packets from an Ethernet link and sends them to DVB-SPI outputs

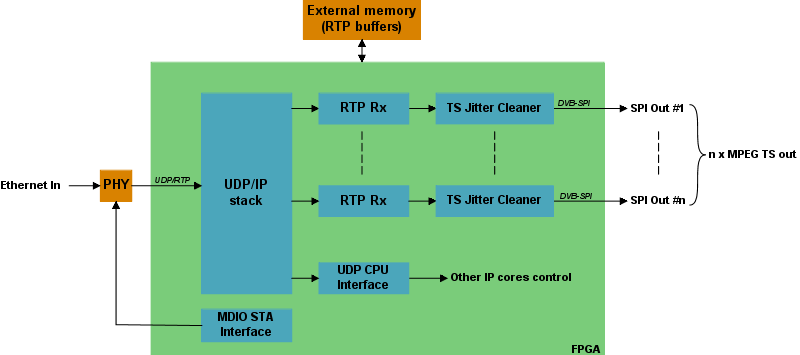

IPTV transmitter block diagram

The IPTV Receiver is made of
  • 1 x Ethernet 100/1000 input
    (the maximum number of UDP/RTP channels depends on the FPGA resources, Ethernet speed connection and bit rate of input flows)
  • n x MPEG TS outputs (DVB-SPI)

For detailed features of each of IP cores used, please refer to their related web pages or to products briefs below.



A bi-directional IPTV Transmitter/Receiver can also be considered (see IPTV Transmitter)
In this case, the UDP/IP Stack IP can be instanced once only.

UDP/IP Stack product brief
RTP Receiver product brief
TS Jitter Cleaner product brief
MDIO STA Management Interface

Data sheets
